Advancer Semi-Automatic Wet Processor

製程	CLEAN
廠牌	RENA

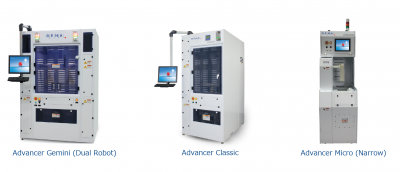

RENA NA Advancer Series wet processing systems are highly configurable, semi-automated, modular, front-back, side mount robotic wet stations.

Production Ready

High Performance

Low Cost Ownership

•　Front-back side mount robot

•　Bulk chemical ready

•　Chemical spiking and in-tank

　 blending

•　Quick dump rinse

Versatile

Multiple Models

Optimum Performance

•　Multiple clean, etch and

　 stripapplications

•　3 core platforms with 1–6 tanks

•　Acid and solvent process

•　Single or dual robot options

•　100mm to 200mm

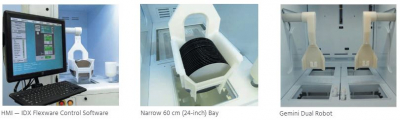

Performance and Yield with IDX Flexware

•　Flexible

•　Configurable

•　Precise

•　SECS/GEM compliant

•　Touch-screen interface

___________________________________________________________________________________________________________________

　Designed for ︓ Productivity • Safety • Reliability • Configurability • Low Cost • Maintenance Friendly

	Advancer Micro		Advancer
	Micro FA	Micro RA	Classic 150
Max Static Tank Size	Single 200mm	Single 200mm	Single 200mm
Max Recirculated Tank Size	N/A	Single 150mm	Single 150mm
Concurrent Lots Processed	1	1	1
Exhaust	Back	Top/Back	Top
Available Tank Lids	No	No	Yes
Available Filter Recirculation	No	Yes	Yes
Available Mega/Ultrasonics	No	No	Mega/Ultra
Maintenance Access	Front	Back	Back
Available Chemical Fill Type	Manual	Manual or Bulk	Manual or Bulk
Available Spiking	No	Yes (Process dependent)	Yes (Process dependent)
General Specifications	Shell style: Single shell fully integrated design. 　　　　Shell material: Choice of FM4910 (Halar, CPVC, PVDF), polypropyleneor stainless steel.
